Description

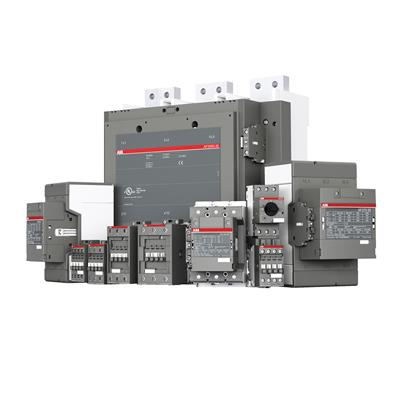

⚡ ABB Magnetic Contactor – Product Overview

ABB Magnetic Contactors are high-performance electromagnetic switching devices used to control electric motors and power circuits safely and efficiently.

They are widely used in:

• Industrial automation
• Elevator systems
• Generator & substation panels
• HVAC systems
• Solar & electrical distribution

👉 A magnetic contactor works by using an electromagnetic coil to open and close contacts, enabling remote switching of high-power circuits.

🔧 Product Range & Types

🔹 1. AX Series (Economical Range)

• Current Range: 9A – 80A
• Motor Rating: 4kW – 37kW
• Poles: 3 Pole
• Voltage: Up to 690V AC

✔ Suitable for small motors
✔ Cost-effective solution

👉 Example: AX09, AX12, AX25, AX50

🔹 2. AF Series (Advanced Range)

• Current Range: 9A – 1000A
• Voltage: AC & DC wide control voltage (100–250V)
• Motor Capacity: Up to 100+ kW

✔ Energy-efficient coil (low power consumption)
✔ Handles voltage fluctuations
✔ Silent operation

👉 Example: AF96, AF116

🔹 3. A Series (Heavy Duty)

• Current Range: 50A – 1000A
• Application: Heavy industrial loads

✔ High durability
✔ Used in large motors and power distribution

👉 Example: A50, A145

📊 Key Specifications

• Rated Current: 9A – 1000A
• Poles: 3P / 4P
• Control Voltage: 24V, 48V, 110V, 220V AC/DC
• Frequency: 50/60 Hz
• Standards: IEC 60947, UL, CSA
